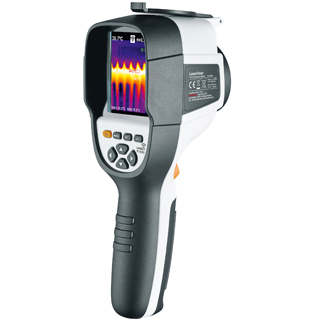

Laserliner ThermoCamera Connect

ThermoCamera Connect

Compact thermal imaging camera for applications in construction, electrical engineering & mechanical engineering with WLAN interface

Included FREE

  • Li-Ion battery pack
  • Hard Case

Product features

Protective cap for infrared optics

Protective cap for infrared optics

IR sensor with 220 x 160 pixel resolution

IR sensor with 220 x 160 pixel resolution

High resolution 3.2 inch colour display

High resolution 3.2 inch colour display

Reliable evaluation & analysis of temperature conditions

Reliable evaluation & analysis of temperature conditions

Product in detail

ThermoCamera Connect - 082.086A

  • High-resolution 3.2″ colour display for reliable evaluation & analysis of temperature conditions
  • IR sensor with 220 x 160 pixel resolution & focus-free infrared lens allows detailed & versatile image analysis
  • Large measuring range from -20°C to 350°C, adjustable emissivity range from 0.01 to 1.0 or selection from material table
  • Thermal Sensitivity – NETD 0,07°C @ 30°C
  • Analysis in various image modes:
    Full-screen: infrared image, digital image
    MIX image: crossfade infrared/digital image
  • Selectable standard colour pallets: Spectrum, Iron, Cool, White, Black
  • Central measuring point for temperature analysis & additional hot/cold spot measurement
  • Data transfer and control via WLAN, with display of the infrared live image
  • Simple & easy to operate thanks to easy-to-access menu buttons
Troubleshooting Connection Issues with the ThermoCamera Connect? This document helps with connection issues to a PC or Laptop when you’re trying to download data from the Camera – read more >>

Product code: 082.086A

Technical data

IR SENSORUncooled microbolometer, 9 Hz, 8-14 μm Resolution 220 x 160 pixels
IR OPTICSHigh-quality IR-lens FOV 27° x 35° fixed focus, working area: 0.5 m ... 20 m
THERMAL SENSITIVITYNETD 0,07°C @ 30°C
MEASUREMENT RANGE-20°C ... 350°C
DIGITAL CAMERAResolution 640 x 480 pixels
ACCURACY± 2°C or ± 2% of measured value
DISPLAY3.2" colour TFT
IMAGE MODESinfrared image, digital image, MIX image
WEIGHT (incl. battery pack)389 g
FORMATJPEG format
MEMORY FUNCTIONIntegrated SD memory (more than 20.000 images)
PORTWLAN
CONNECTIONSMicro-USB charging
OTHER FEATURESchoice of 9 languages
OPERATING CONDITIONS0°C … 45°C, max. humidity 20 … 85% rH, no condensation, max. working altitude 2000 m above sea level
STORAGE CONDITIONS-20°C … 60°C, max. humidity 85% rH
PROTECTION CLASSIP54
POWER SUPPLY / CHARGING TIME / OPERATING TIMELi-Ion pack battery 3.5V - 4.2V / 2000 mAh / Micro USB 4.75V - 5.50V / approx. 2 - 3 h (depending on use)
DIMENSIONS (W x H x D)105 x 223 x 90 mm
MEASUREMENT RANGE-20°C ... 350°C
THERMAL SENSITIVITYNETD 0,07°C @ 30°C
IR OPTICSHigh-quality IR-lens FOV 27° x 35° fixed focus, working area: 0.5 m ... 20 m
IR SENSORUncooled microbolometer, 9 Hz, 8-14 μm Resolution 220 x 160 pixels

Technology key

  • 3,2" Color TFT 3,2″ colour TFT
  • Dust & water protection 54
  • Hard Case
  • IR-SENSOR 220 x 160 pixel IR-SENSOR 220 x 160 pixel
  • JPG 640 x 480 pixel
  • REC
  • Recharge
