Highly accessible marking aids in the sender and receiver provide the centring
Precise localization of entry & exit positions
Clearly visible LED indicators & integrated LCD display
Easy and safe alignment of the drill channel

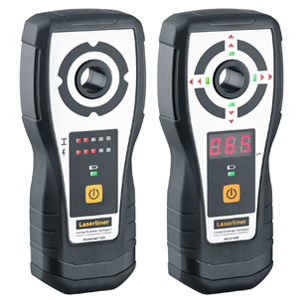

This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm. Easily visible LED indicators and acoustic signals that can be switched off provide the location. Highly accessible marking aids in the sender and receiver provide the centring. The required drilling depth can be determined up to 150 cm using the integral LCD display. A visual and acoustic warning is sent when foreign objects are detected. The sender and receiver fit comfortably in the hand thanks to their ergonomic design.
Weight | 507 g (RECV and TX incl. batteries) |
Dimensions (W x H x D) | 77 mm x 179 mm x 31 mm |
Storage Conditions | -20°C … 60°C, max. humidity 85% rH, no condensation |
Operating Conditions | RECV: -30°C … 40°C / TX: -20°C … 40°C, max. humidity 80% rH, no condensation, max. working altitude 2000 m above sea level |
Operating Time | RECV: approx. 20 hours / TX: approx. 12 hours |
Power Supply | RECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA) |
Detection Range AC | 2 cm |
Accuracy | typically 3% of measured depth |
Measuring Depth | Positioning RECV: 2 - 120 cm wall thickness Depth display RECV: 2 - 150 cm drilling depth |
