Auto Sound alerts for long range work
Max laser reception range 40 m
Time-saving for close and long range alignment work
Rapid detection of red and green laser lines

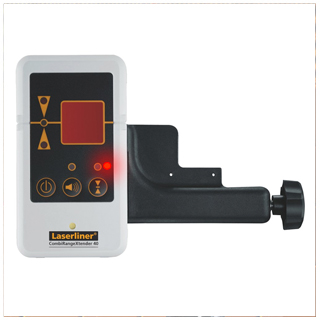

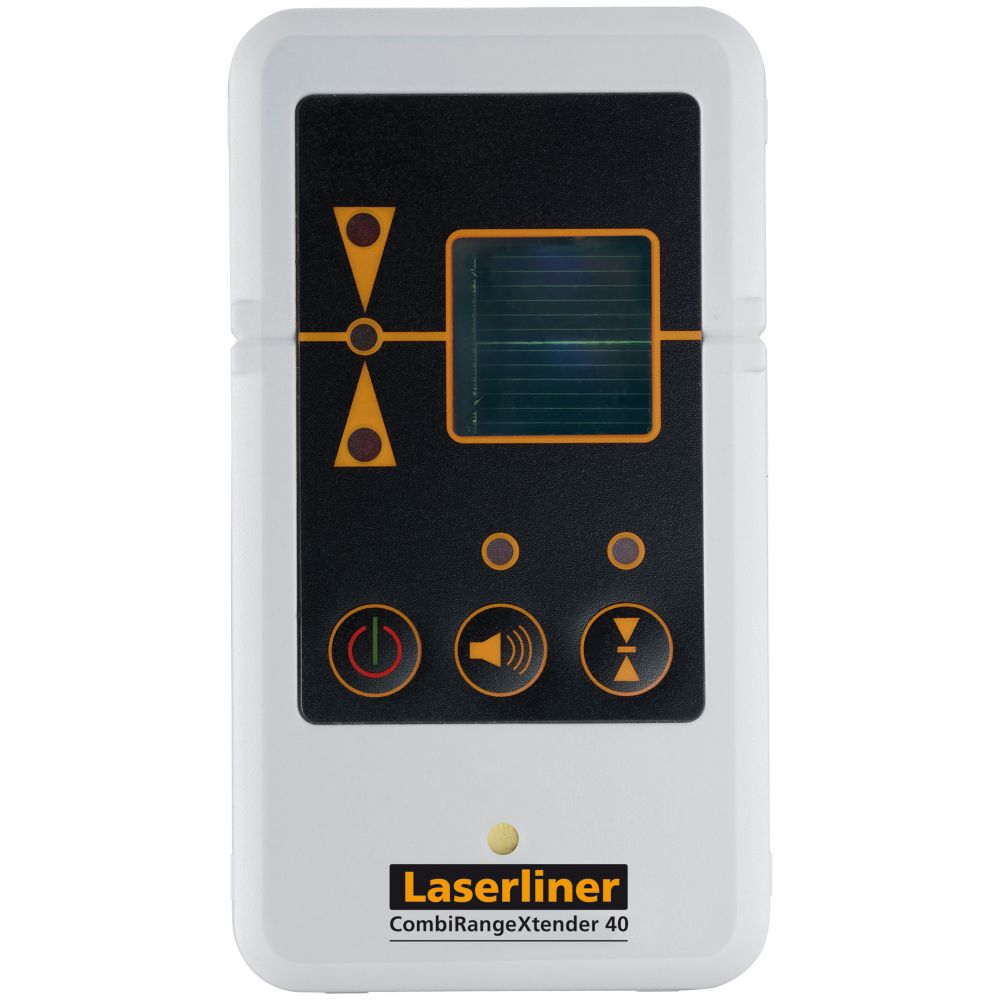

The laser receiver detects red and green laser lines. The device thus allows horizontal and vertical reference dimensions to be precisely established in bright lighting conditions and over long distances. The user is notified by LED signals when laser lines are identified. The universal bracket and the magnets provide easy attachment to measuring staves and metal surfaces.
Product code: 033.35A
WEIGHT | 150 g (incl. batteries) |
DIMENSIONS (W X H X D) | 61 mm x 111 mm x 22 mm |
STORAGE CONDITIONS | -10°C … 70°C, max. humidity 80% rH |
OPERATING CONDITIONS | 0°C … 40°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
POWER SUPPLY | 2 x 1.5V LR03 (AAA) |
AUTOMATIC SWITCH-OFF | after 5 minutes (if display remains unchanged) |
LENGTH OF RECEIVER UNIT | 20 mm |
LASER RECEPTION RANGE | max. 40 m |
